Electrification & Festooning

Electrification & Festooning

Demag DCL Compact Line – Compact, easy to assemble and service friendly, for heavy-duty applications…

Developed to meet practical needs, the new high-profile Demag DCL Compact Line features a number of innovations. With its new design, it not only looks good, it literally features more. Demag DCL Compact Line is specified for currents up to 200 A at 60% CDF. The system is fitted with up to 7 conductors, as required, both for supplying mobile consumers with power as well as for transferring control signals in your facility.

Demag KBK Trailing Power Supply Line System - For trailing cable power supply lines, light-weight cranes and monorails…

Select KBK 25 for reliable, robust and economical systems in material handling installations, mechanical engineering applications, trade and industry. Round or flat cross-section trailing cables can be used to supply power to electrical equipment on monorails and cranes. You can also use the profile sections to build small handling systems.

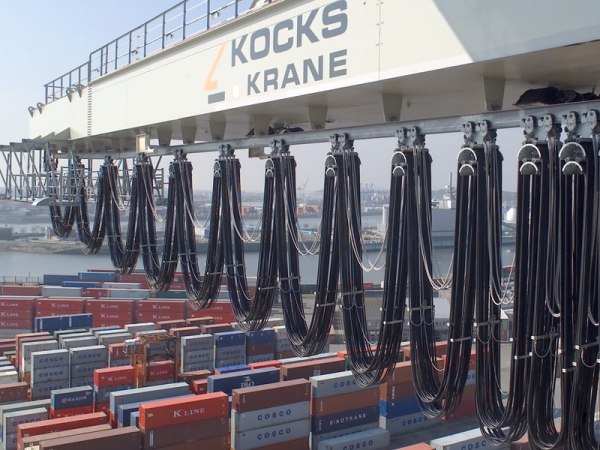

Duct-O-Wire Festoon Cable & Track Systems

  • 14 Gauge C-Track and 12 Gauge C-Track systems are available in galvanized or stainless steel for flat or round cable and air hoses.

  • Factory pre-formed curves in 14 gauge systems are available in 4', 5', 6', and 7' radii.

  • Aluminum track is available for pipe type trolleys for both straight and curved systems.

  • Wire supported systems available for both flat and round cables.

  • New pendant control trolleys with Quick Plug disconnects available.

  • Special Applications & Services for Festoon Systems:

  • Stainless steel and brass bearings for special applications.

  • Precision bearings available in both 14 and 12 gauge sizes for long life wear and high speeds.

  • Both steel and plastic saddles available for flat and round cables.

  • Pre-assembled systems with cables on trolleys and packed for rapid installation.

  • Standard cables available in sizes ranging from #2AWG to #16AWG.

  • Cable fittings in both cast metal with grommets and non-metallic shrink type.

  • Tiered saddles for special cable loads or configurations.

Duct-O-Wire Conductor Systems

  • Bottom contact Figure 8 conductors from 90 to 350 amp.

  • Side contact Figure 8 conductors from 90 to 350 amp.

  • Heavy duty conductors in 500, 1000, and 1500 amp ratings with stainless steel running surface for longer wear and higher speed operation.

Special Applications and Services for Conductors:

  • Cover with ultra violet additive for outdoor sun locations.

  • High temperature cover (280F) for all Figure 8 and HD-500 conductors.

  • Stainless steel conductors in Figure 8 for corrosive atmospheres.

  • Epoxy coated, stainless steel, and insulated hangers for wet and corrosive atmospheres.

  • Factory built expansion sections and anchors for expansion control.

  • Factory bent curved conductor sections for Figure 8 systems.

  • A variety of Figure 8 covers for matching competitive systems.

  • Heated conductor systems for ice prevention on outdoor systems or freezer storage.

  • Totally enclosed covers with flap for air-born contaminants, indoor & outdoor versions.




Helm – Precision Crane is able to supply replacement parts for all of your Helm cable systems. Please contact us for further information on helm products or to place an order.

Saf-T-Bar Insulated Electrification Systems provide you with the technology to move material handling equipment, data and machinery safely and effectively. With six different series to choose from we’re confident we’ll be able find a system to suit your application:

Vahle Conductor Systems

Vahle Cable Management Systems

Need Help? Our Support team is here

Our in-house support team is also always available to provide you with the technical expertise you require to keep your equipment up and running. Problem, question or concern…we’re here to help!
